南宁不锈钢法兰双球橡胶接头

作者:admin   时间:2018-11-22 13:39

  淞江集团是一家生产研发橡胶软接头,金属软接头,不锈钢波纹管,弹簧减振器的生产厂家,欢迎新老客户来我厂实地考察。

      Songjiang Group is a manufacturer of rubber soft joint, metal soft joint, stainless steel bellows and spring shock absorber. Welcome new and old customers to come to our factory for field investigation.

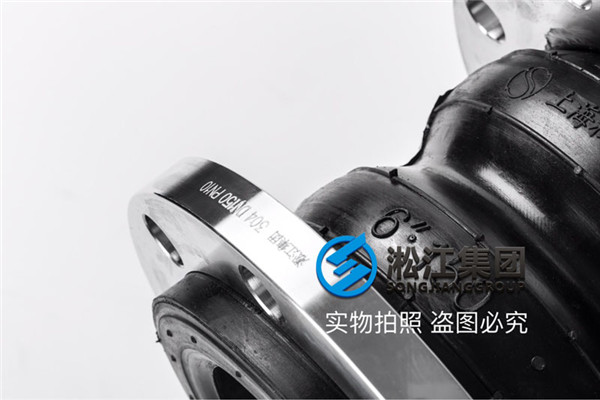

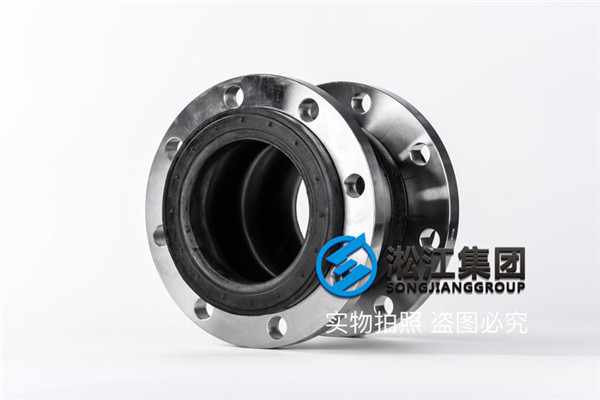

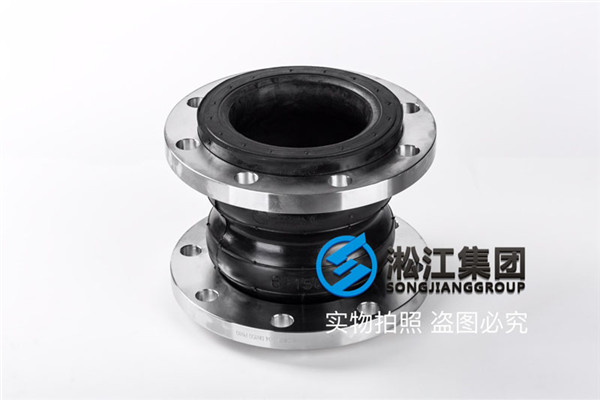

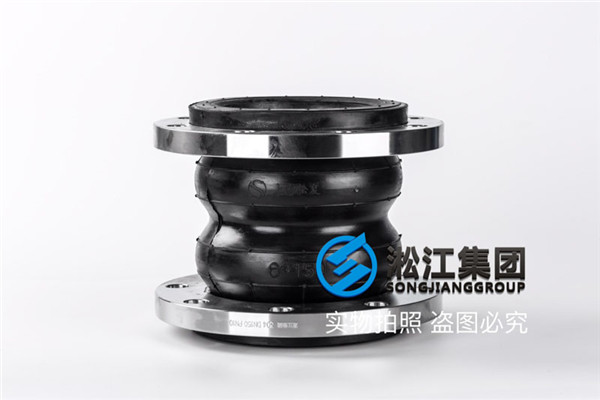

  双球橡胶接头和单球橡胶接头大的不同就是球体本身有两个管状的起伏。因此其球体长度也有相应的增加。

      The difference between the double ball rubber joint and the single ball rubber joint is that the sphere itself has two tubular ups and downs. Therefore, the

  双球橡胶接头又称作橡胶接头,减振器、管道减震器、避震喉等,是一种高弹 、高气密 ,耐介质 和耐气候 的管道接头.双球橡胶接头具有橡胶接头的特性及优点。橡胶软接头有单球体橡胶接头、双球体橡胶接头、异径橡胶接头等系列产品。双球橡胶接头采用管道两边法兰的连接方式,安装在管道上可以和阀门连接,主要起到补偿管道收缩,减少管道震动对其他设备造成的伤害,当用于泵房及震动剧烈的泵阀及长距离管道的时候,橡胶接头必须有固定托架或安装防拉脱装置。

     Double-ball rubber joint, also known as rubber joint, shock absorber, pipeline shock absorber, shock absorber throat, is a kind of pipe joint with high elasticity, high air tightness, medium resistance and climate resistance. Double-ball rubber joint has the characteristics and advantages of rubber joint. Rubber soft joints include single sphere rubber joints, double sphere rubber joints, different diameter rubber joints and other products. Double-ball rubber joint adopts the connection mode of flange on both sides of pipeline, which can be connected with valve when installed on pipeline. It mainly compensates the contraction of pipeline and reduces the damage caused by pipeline vibration to other equipment. When used in pump house and pump valve with severe vibration and long-distance pipeline, rubber joint must have fixed bracket or installation prevention. Pull off device.








  法兰双球橡胶接头如架空使用可配弹性支架,安装时螺栓要用对角法上紧,如管路压力过高时,应用极限螺栓将两端法兰连在一起。5、法兰连接标准采用GB/T9115-2000标准,如用其它标准,可另行说明。橡胶接头工作压力等级分为:0.6MPa、1.0Mpa、1.6Mpa、2.5Mpa。

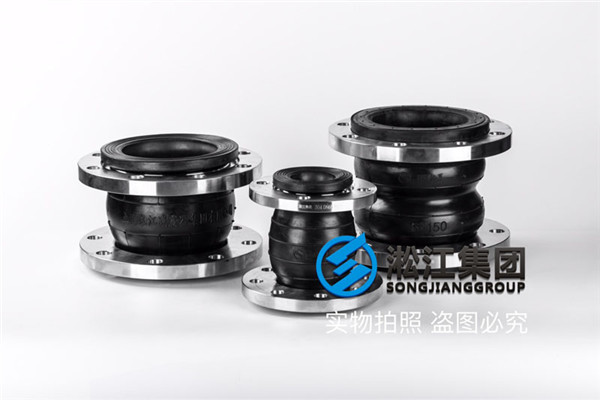

  单球体橡胶接头跟双球体橡胶接头区别在哪里呢

  单球体橡胶接头是一个橡胶球体,而双球体橡胶 接头是由两个橡胶球体构成,双球体橡胶接头比单球体橡胶接头在结构上多了一个橡胶球体,我们都知道,橡胶具有一定 的弯曲延伸性能,因此,采用了双球体的橡胶接头其弯曲角度要比单球体橡胶接头大一倍左右。正常情况下,单球体橡胶 接头的偏转角度大约为15°左右,但是双球体橡胶接头的偏转角度能达到30°,对于一些弯度比较大的接口,使用双球体 橡胶接头要好用的,这也是他们大的区别。

  双球体橡胶接头的安全性能没有单球体高,一般使用时需要注意,特别是在双球体橡胶接头的球体常期处于高压的情况下容易产生爆裂,这种使用方式开发出适合承压的双球体橡胶接头增压保护装置,能很好的保护球体的稳定性,在使用过程中突然增压也能起到很好的保护作用。

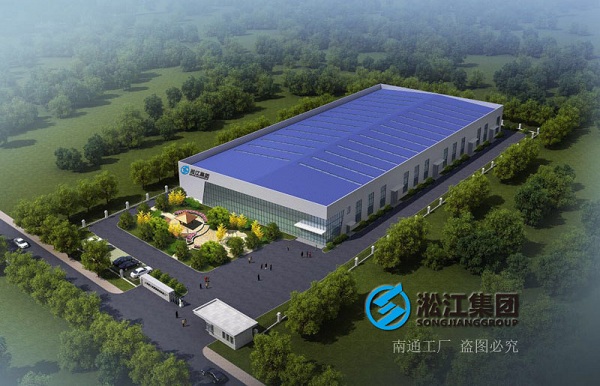

      淞江集团是一家生产橡胶接头,金属软管,弹簧减震器,波纹补偿器的实体厂家,不凡的军工技术团队30年生产经验与众多的权威资质证书来证明我们的实力,欢迎全球广大客户来我们公司考察合作谢谢!


Songjiang Group is an entity manufacturer of rubber joints, metal hoses, spring shock absorbers and corrugated compensators. The outstanding military technical team has 30 years of production experience and many authoritative certificates to prove our strength. Welcome customers from all over the world to visit our company and cooperate. Thank you!
